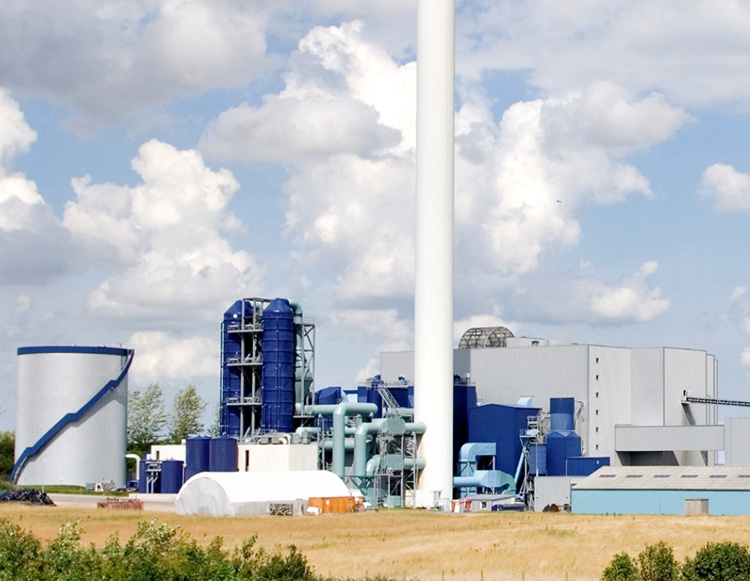

MEC – BioHeat & Power

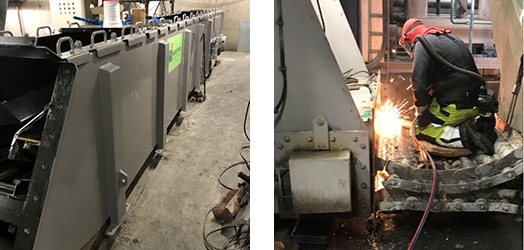

Slag Conveyor - Holstebro, Denmark

• Download the Case Study (PDF)

Client: MEC – BioHeat&Power

Year: 2020

Milestones

• Contract: 03-02-2020
• Start on site: 07-02-2020
• Hand over: 23-10-2020

Data

• Fuel: Household waste
• Steam temp: 522°C
• Steam pressure: 79 bar

Project Description:
The delivery included project management, engineering, manufacturing, delivery, disassembly, installation, commissioning, testing and documentation for the replacement of the wet slag conveyor and grate siftings conveyor on both boiler lines 1 and 2 for the MEC waste-to-energy plant.

Ash/slag conveyor - Type 610

Dimensions and data

• Belt width: 1372 mm
• Frame width: 1716 mm
• Frame height: 2000 mm
• Conveyor style: C-30°
• Speed: ~0.5 m/min (50 Hz)

Handling capacity

• Design capacity: 4000 kg/h
• Bulk density: 1200–2000 kg/m³

Grate siftings conveyor - Type 607

Dimensions and data

• Belt width: 610 mm
• Frame width: 824 mm
• Frame height: 1095 mm
• Conveyor style: C-35°
• Speed: ~0.5 m/min (50 Hz)

Handling capacity

• Design capacity: 400 kg/h
• Bulk density: 1000 kg/m³

Scope of Supply:

• Ash/slag conveyor type 610, 2 pcs (one of each boiler line, type Mayfran)
• Grate siftings conveyor type 607, 2 pieces (one for each boiler line, type Mayfran)
• Disassembly of existing conveyor and slag chute
• Installation of new conveyor and new slag chute
• Commissioning and documentation
