Water-tube Package and Industrial Boilers

B&W’s line of industrial package boilers represents more than 150 years of ingenuity and experience, providing dependable performance for a wide range of industries and applications.

Over the years, our industrial boiler configurations have been known by various model names, including FM, HCFM, PFM, PFI, PFT, TSSG® and others — D-type or O-type, single-drum or multi-drum. The unique designs offered by these various models provide our customers with flexible options and features to meet any steam generation demand.

Download the Brochure (PDF)


B&W® boilers and Coen® burners: Integrated for reliability, efficiency and value

Through an agreement with John Zink Hamworthy Combustion (JZHC), B&W offers a comprehensive steam generation solution that pairs JZHC’s Coen® burners with B&W’s water-tube package boilers for refining, petrochemical, pulp and paper, mining, manufacturing, utilities and other industries.

Working together, the two companies offer streamlined

  • Sourcing
  • Engineering
  • Manufacturing and
  • Installation services for a greatly simplified, high-performing, low-emissions steam generation system.

Equipment can include:

  • Boiler
  • Burner, including windbox, fuel skid and PRV skid
  • Combustion air fan
  • Ammonia injection grid (AIG)
  • Selective catalytic reduction (SCR) reactor
  • Economizer
  • Deaerator
  • Stack
  • and more.

Backed by more than 5,000 units and 150 years of experience, B&W's water-tube package and industrial boilers have an established reputation for reliability and proven performance. They are engineered to meet unique capacity, space, fuel, emissions, transportation, installation and other requirements. They offer reliable power with low emissions, low auxiliary power requirements, simple operation, low maintenance and can be tailored for a variety of fuel options, including natural gas. Coen burners are installed in more than 15,000 plants worldwide and are engineered for optimized steam production and emissions control.

Design Features and Benefits of our Water-tube Package Boilers

Furnace wall water cooling – eliminates refractory and related maintenance

Gas-tight setting membrane – inhibits dew-point sulfur corrosion and outages caused by gas leaks

Rugged steel-based frame – supports boiler and allows jacking and skidding

Outer lagging – galvanized, weather-tight for outdoor installations

Drum internals – ensure positive circulation, low moisture, high steam purity

Larger tube diameter (2.5 in. [6.35 cm] tubes spaced 1 in. [2.54 cm] apart) – contributes to a faster load response and helps prevent membrane thermal cracking

Grooved tube seats – protect against leaks during transportation and throughout operation

Solid membraned division wall – prohibits furnace gases from bypassing generating tubes

Water wash troughs and drains – facilitates offline water-washing

Inverted loop, fully drainable superheaters – saves time during startup while minimizing the chances of over-heat during the pressure-raising stage.

Sootblowers – for effective cleaning of the superheater, generating bank and other heat transfer surfaces

Read The Brochure

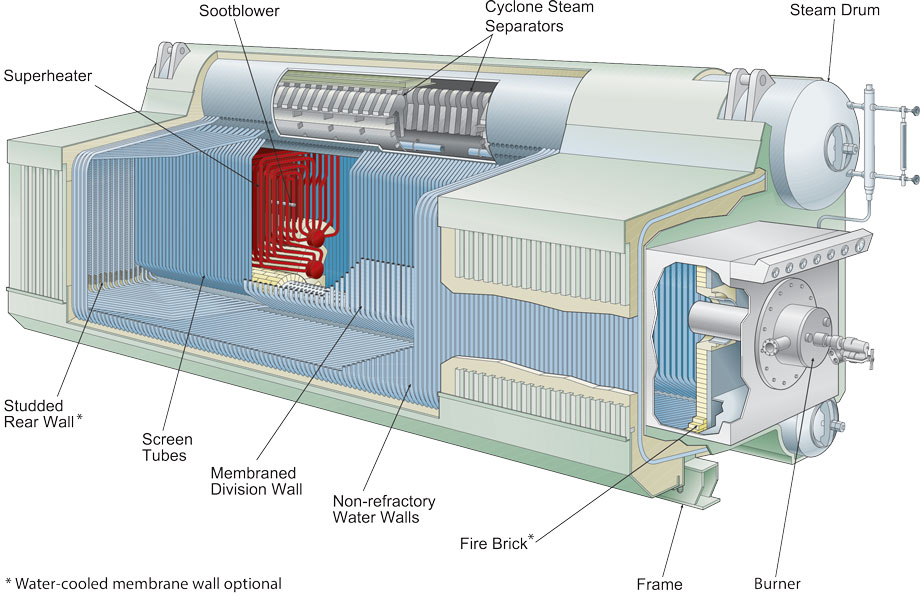

Package Boiler Illustration Babcock Wilcox



B&W package boilers offer:

  • Reliable steam generation
  • Low auxiliary power requirements
  • Low emissions
  • Simple operation and low maintenance
  • Operational flexibility – high turndown and fast load ramping

Capacities to Meet the Most Demanding Requirements

Within a range of standard sizes and capacities, our industrial water-tube package boilers are custom-engineered to each project’s unique specifications for varying inputs and desired outputs. All our designs feature the high levels of quality, reliability and efficiency for which B&W is known.

  Boilers   Capacity Range* (lb/h) Length   Width Height   Drum Size

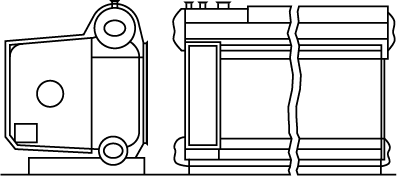

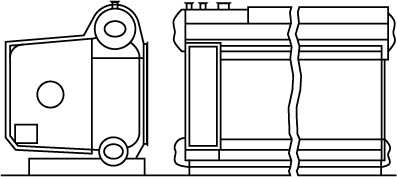

 FM9 Babcock Wilcox

 FM 9-22
26
30
34
39
43
48
52
57

8,200

to
40,000

7 ft 7 in
8 ft 11 in
9 ft 11 in
11 ft 3 in
12 ft 7 in
13 ft 11 in
15 ft 3 in
16 ft 7 in
17 ft 11 in



10 ft 2-7/8 in

12 ft 4 in

36 in Steam Drum

24 in Lower Drum

 FM10 Babcock Wilcox  FM 10-52
57
61
66
70
79
FM 101-88

35,000

to
75,000

 16 ft 7 in
17 ft 11 in
19 ft 3 in
20 ft 7 in
21 ft 11 in
24 ft 7 in
24 ft 3 in



10 ft 10-5/8 in

11 ft 2-3/8 in

13 ft 6 in

36 in Steam Drum

24 in Lower Drum

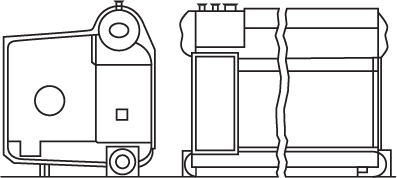

 FM103 Babcock Wilcox FM 103-70
79
88
97
70,000
to
100,000

21 ft 3-3/16 in
23 ft 11-3/16 in
26 ft 7-3/16 in
29 ft 11 in



11 ft 9 in

13 ft 9-3/4 in

 42 in Steam Drum

24 in Lower Drum
(Optional 30 in)

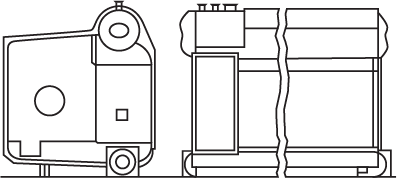

 FM106 Babcock Wilcox FM 106-79
88
97
FM 117-88
97

100,000
to
155,000

23 ft 11-3/16 in
26 ft 7-3/16 in
29 ft 3-3/16 in
26 ft 7-3/16 in
29 ft 3-3/16 in



11 ft 9 in

11 ft 11-1/4 in

14 ft 3 in

15 ft 4-1/2 in

 48 in Steam Drum

24 in Lower Drum
(Optional 30 in)

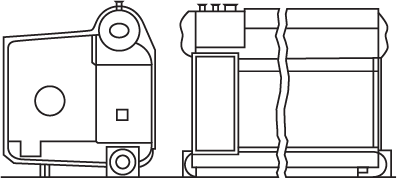

 FM120 Babcock Wilcox FM 120-97
112
124
FM 160-124

155,000

to
275,000

29 ft 3-3/16 in
33 ft 7-3/16 in
37 ft 3-3/16 in
37 ft 3-3/16 in



12 ft 5-3/8 in

14 ft 0-3/8 in

16 ft 10-1/2 in

20 ft 0-1/2 in

54 in Steam Drum
(Optional 60 in for FM 160-124)

24 in Lower Drum
(Optional 30 in)

   Steam Capacity  Steam Pressure Steam Temperature

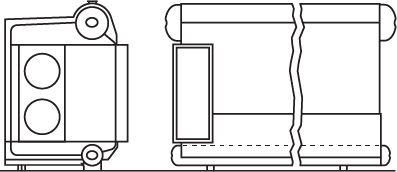

  HCFM Babcock Wilcox

HCFM
200,000 to 350,000 lb/h
(90.6 to 158.6 T/h)



 to 1250 psig (7.2 MPa)  to 825F (441C)

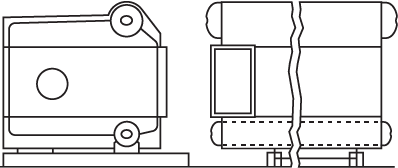

 PFM Babcock Wilcox

PFM
200,000 to 600,000 lb/h
(90.6 to 271.8 T/h)



 to 1800 psig (12.4 MPa)  to 900F (482C)

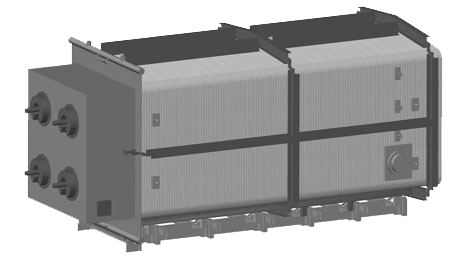

 TSSG Furnace Module

TSSG
300,000 to 1,200,000 lb/h
(135.9 to 543.6 T/h)



 to 2400 psig (16.5 MPa)  to 1006F (540C)

Notes:

1. All package boilers are of membrane construction.

2. Because of B&W’s constant effort to improve design, equipment supplied may differ slightly from that described above.

* Steam capacities shown are saturated steam. Capacities will vary depending on conditions and limitations.

Metric Conversions:

inches x 25.4 = mm

inches x 2.54 = cm

feet x 0.3048 = m

lb/h x 0.000453 = T/h

lb/h x 0.000126 = kg/s

Package Boiler Designs

We can provide both D-Type and O-Type boiler configurations.

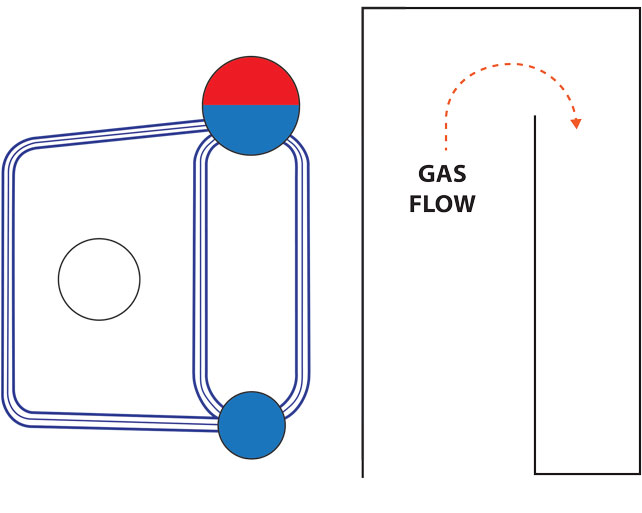

D Style Boiler Babcock Wilcox

  • One steam drum and one lower drum
  • Drums centered over each other with furnace offset to one side
  • One generating bank

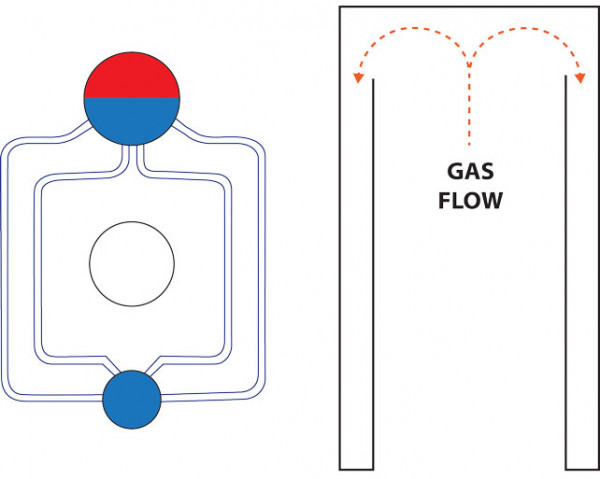

O Style Boiler Babcock Wilcox

  • One steam drum and one lower drum
  • Drums centered over each other with furnace in center of boiler
  • Two generating banks

Specifications

Capacity 10,000 to 1,200,000 lb/hr (4.5 to 544.2 T/hr)
Size/Space Various modular designs for shop and/or field assembly
Temperature Saturated to 1005F (540C)
Design Pressure 250 to 2400 psig (1.7 to 16.5 MPa)
Fuel Liquid or gaseous fuels such as oil, natural gas, carbon monoxide (CO), blast furnace gas (BFG), coke oven gas (COG), and other byproduct liquid and gaseous fuels
Air/Water Treatment Emissions and water-side deposition control systems

Our industrial water-tube package boilers have been installed in a variety of facilities providing steam for varied applications, including:

  • Refining and petrochemical
  • Utility power
  • Pulp and paper
  • Chemical and pharmaceutical
  • Universities and institutions
  • Food processing
  • Metals and mining
  • Composite and carbon fiber
  • Carbon black
  • Wood products
  • and many more

B&W Innovation

MultiCirc (patent-pending)

Our multi-circulation systems accommodate lower-quality feedwater and maximize thermal efficiency while maintaining reliability by minimizing boiler tube internal scaling.

Connection Ready

The boiler and auxiliary equipment modules, depending on size, can be shop mounted to skids where they are pre-wired and piped to accelerate transportation and reduce field installation times.

Elevated Drum

Our elevated-drum design is used for drum retention times of 5 minutes or more from normal water level to low water fuel cutout. Additionally, this design is utilized where shipping limitations exist as it allows for a more symmetrical load with the upper steam drum shipped separately from the boiler and installed onsite.

Auxiliary Equipment

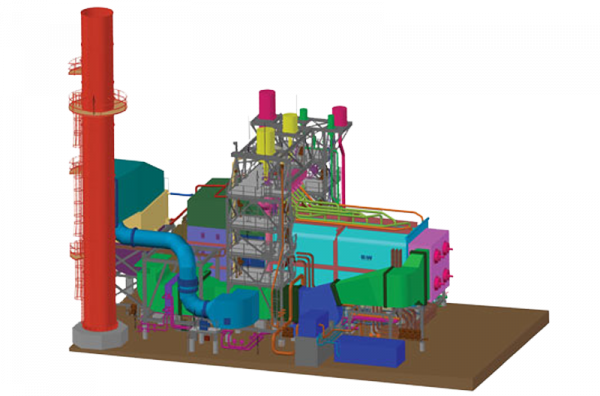

Boiler Turbine

  • Economizers
  • Burners
  • Controls
  • Forced draft fan and drives
  • Flues and ducts
  • Stacks
  • Deaerators, feedwater pump sets
  • Oil pumps
  • Heater sets
  • Post-combustion emissions control systems
  • Code piping
  • Balance of plant

Aftermarket Support

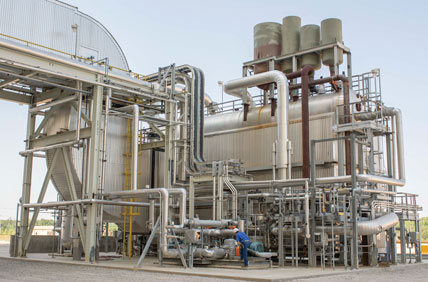

BW Boiler Babcock Wilcox



B&W’s network of field service engineers can provide services ranging from routine inspections and controls tuning to engineering studies, low emissions conversions or new control systems.

B&W can also apply our knowledge and experience gained from supplying more than 5000 industrial water-tube boilers to boiler retubing projects. While other suppliers most often provide repairs or replacements “in-kind” based on standard drawings which may not exactly reflect the tube arrangement, we can reference accurate, contract-specific drawings to verify design accuracy.

Manufacturing

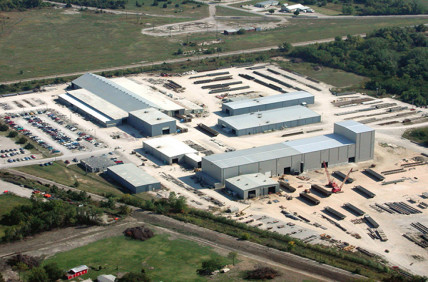

B&W Boiler Parts Manufacturing in Chanute

B&W’s custom industrial package boilers can be fabricated in our Chanute, Kansas, USA, manufacturing facility. All major boiler components are fabricated and assembled in-house to ASME Boiler and Pressure Vessel Code Section I or Section VIII.
