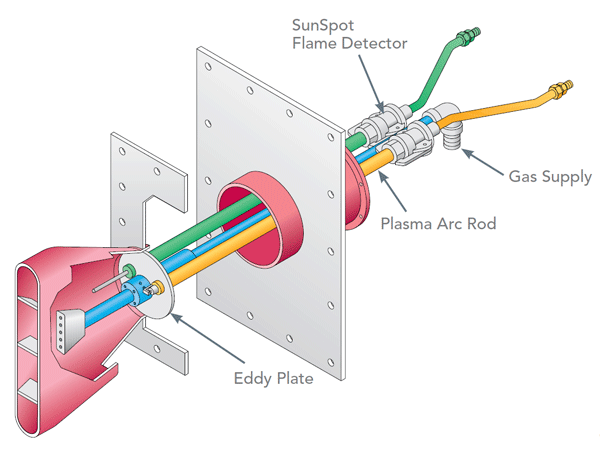

FPS Gas Horn Ignitor

FPS Gas Horn Ignitor

Typical Natural Gas Fuel Schematic

Gas Horn Ignitor Schematic


The integrated electrical-mechanical components of the FPS gas horn igniter are designed to optimize performance in these key areas:

  • Ignition reliability
  • Combustion
  • Flame stability
  • Flame monitoring


  • Up to 20 million Btu per hour heat input
  • Ignitor peripherals (each FPS gas horn ignitor is supplied with the following environmentally sealed peripheral components)
    • PAI power pack in NEMA 4 enclosure
    • SunSpot flame detector electronic module
    • Gas hose with swivel connector
    • (2) brass-braided flex conduit assemblies for ignitor electrical connections (flame detector and spark)
    • Plasma arc ignition
      • Input: 120vac, 50/60hz, 100 VA
      • Output: 8 joule at 3 arc/sec
    • Ignitor mounting plate with gasket
View The FPS Gas Horn Ignitor PDF


  • Simple plug-in design
  • Existing air supply is typically sufficient
  • Three-stage ignition for a stable, self-sustaining flame
  • Plasma arc ignition for reliable light-off
  • SunSpot flame detector with:
    • Discrete flame detection
    • No periodic maintenance requirement
    • No field calibration
    • No delicate optics to break or get dirty
  • Easy removal for maintenance
