Karlskoga Energi AB

Economizer and Boiler Wall Replacement Karlskoga Sweden

Economizer and Boiler Wall Replacement - Karlskoga, Sweden

Economizer and Boiler Wall Replacement - Karlskoga, Sweden Client: Karlskoga Energi AB

Year: 2021

Milestones

  • Contract: 2021-04-16
  • Start on site: 2021-09-29
  • Pressure test: 2021-10-21
  • Hand over: 2021-11-29

Data

  • Fuel: Waste
  • Steam temp: 320°C
  • Steam pressure: 32 bar(g)

Project Description:

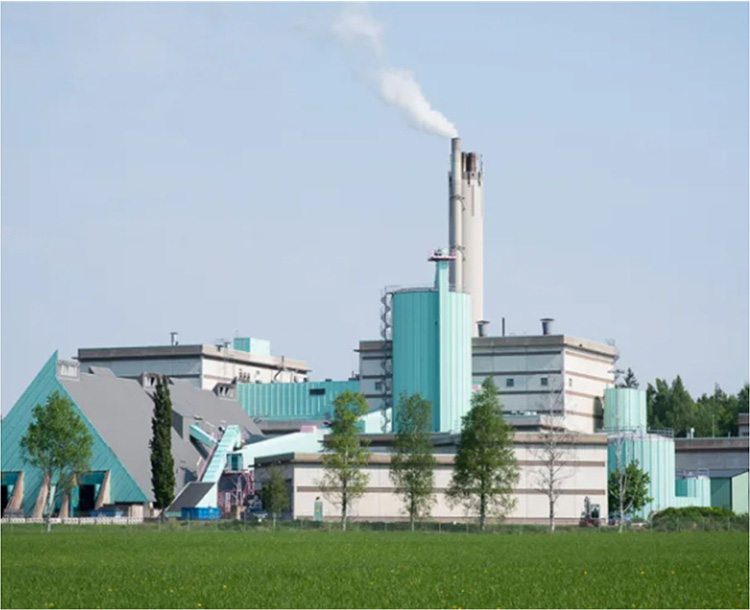

In 2021, Babcock & Wilcox Renewable Service won the project for replacement of the front boiler wall and economizers 1 and 2, as well as the installation of a new rapping device system for cleaning of the heating surface on a waste-toenergy plant (Line 1) in Karlskoga, Sweden.

Delivery includes project management, construction, design, manufacture, delivery, dismantling, installation, commissioning, testing and documentation.

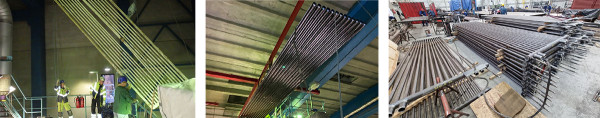

The front wall was replaced one to one, and economizers 1 and 2 were replaced with a new design. Economizers 1 and 2 consist of 19 sections with 17 tubes each. For each economizer, new vents and drainage were installed, then connected to the existing system.

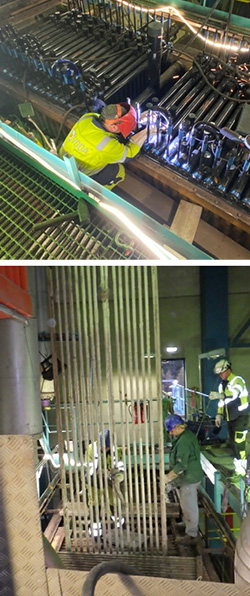

A new rapping device system was installed on the side wall consisting of 2 x 19 individual pneumatic hammers which strike against each header. Unlike the existing rapping system, the new system is pneumatic, using pressurized air as the medium.

Karlskoga Energi AB - Material Details Chart

Karlskoga Energi AB - Economizer Chart

Scope of Supply:

  • Erection of scaffolding
  • Dismantling of existing front wall and economizers 1 and 2
  • Installation of new front wall and economizers 1 and 2
  • Sootblower system complete with control system and air addition
  • Insulation and cladding
  • NDT after EN 12952-5
  • Mechanical installation of all equipment included in the delivery, including dismantling of existing installations
  • Electrical installation of all equipment included in the delivery
  • Purchase of all equipment included in the delivery
  • Trial run and training of operating personnel
  • Operation, maintenance and quality documentation
  • CE marking for delivery in accordance with EN requirements
